I. Product Introduction
CA6240/1000 conventional lathe can undertake all kinds of turning work, in addition to turning inner and outer cylindrical surfaces, end faces and other rotating surfaces, turning various commonly used metric, inch, modulus, and diametral threads, as well as drilling and reaming. The precision of the processed parts and the better surface roughness can be obtained.

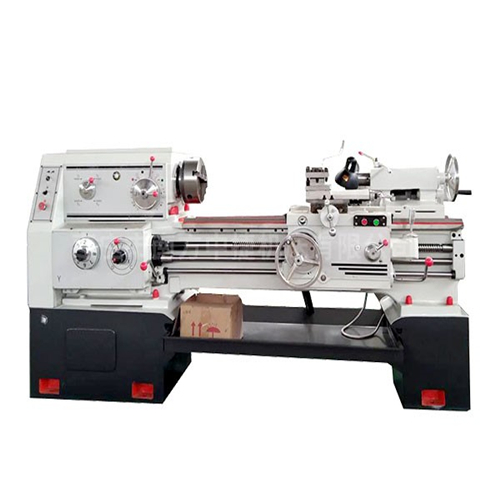

Figure: Lathe Machine (Reference Only).
II. Main technical parameters.
|
Technical parameter |
unit |
CA6240x1000 |
|
Max. swing diameter over bed. |
mm |
400 |
|
Max. swing diameter over carriage |
mm |
220 |
|
Max. swing in gap |
mm |
630 |
|
Effective gap length |
mm |
220 |
|
Bed width |
mm |
400 |
|
Max. workpiece length |
mm |
1000 |
|
Max. turning length |
mm |
900 |
|
Distance from spindle center to bed guideway |
mm |
205 |
|
Section of turning tool |
mm |
25 X25 |
|
Front taper hole of spindle |
Morse |
No. 6 |
|
No. of feeds |
64(kinds)(for each) |
|
|
Spindle speed range forward/reverse |
r/min |
10-1400/14-1580(24 kinds /12 kinds). |
|
Spindle bore diameter |
mm |
52 |
|
Range of metric threads(kinds) |
mm |
1-192mm (44 kinds). |
|
Range of inch threads(kinds) |
TPI |
2-24 tpi (20 kinds) |
|
Range of module threads |
0.25-48 (Module 39 kinds) |
|
|
Range of diametral pitch threads |
1-96DP (37 kinds). |
|
|
Max. tailstock spindle travel |
mm |
150mm |
|
Taper of tailstock spindle bore |
Morse |
Morse NO. 5 |
|
Diameter of tailstock spindle |
mm |
75 |
|
Main motor power |
kw |
7.5 |
|
Packing dimensions |
mm |
3668×1000×1267 |
|
Machine weight |
kg |
2500 |
