Surface Grinding Machine
Overview:
The PCA series Surface Grinding Machine stands out as one of our top-selling machines, garnering considerable interest from diverse industries. It is designed for precision grinding across a variety of materials, encompassing, but not limited to, HSS, carbon tool steel, carbon structural steel, and tungsten carbide.

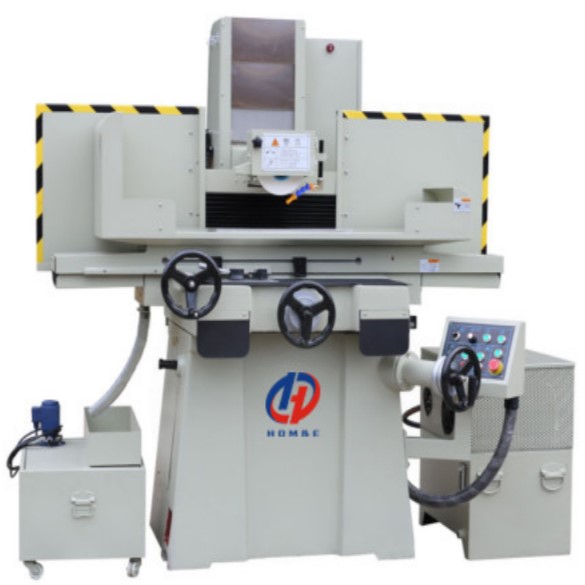

Figure. Surface Grinding Machine (Reference only)
Main Technical Parameters
Main items | Parameters | Unit | Specifications |
Model | - | - | PCA-250AHR |
Table
| Distance from table to spindle centre | mm | 450mm |
Longitude-based travels | mm | 550mm | |
Job platform | mm | 200x500mm | |
Cross feed of Table | Automatic feeding | 0.1-8mm | |
Resolution | Mm | 0.02 | |
Hand wheel per graduation | Mm/grad | 0.02 | |
Work Head | Rapid Vertical Feed | mm/min | 300 mm/min |
Grinding wheel dimensions | mm | 180x12.5x31.75 | |
Grinding wheel RPM (Revolutions Per Minute) | rpm | 2800 | |
Gap between grinding wheel and table | mm | 300mm | |
Vertical increment with handwheel | mm/grad | 0.01 | |
Max. Distance in Vertical Direction | mm | 450 | |
Power supply | Voltage/phase/Hz | - | 380V, 3 phase, 50Hz |
Dimensions | LxWxH | mm | 1750*1400*1680 |
